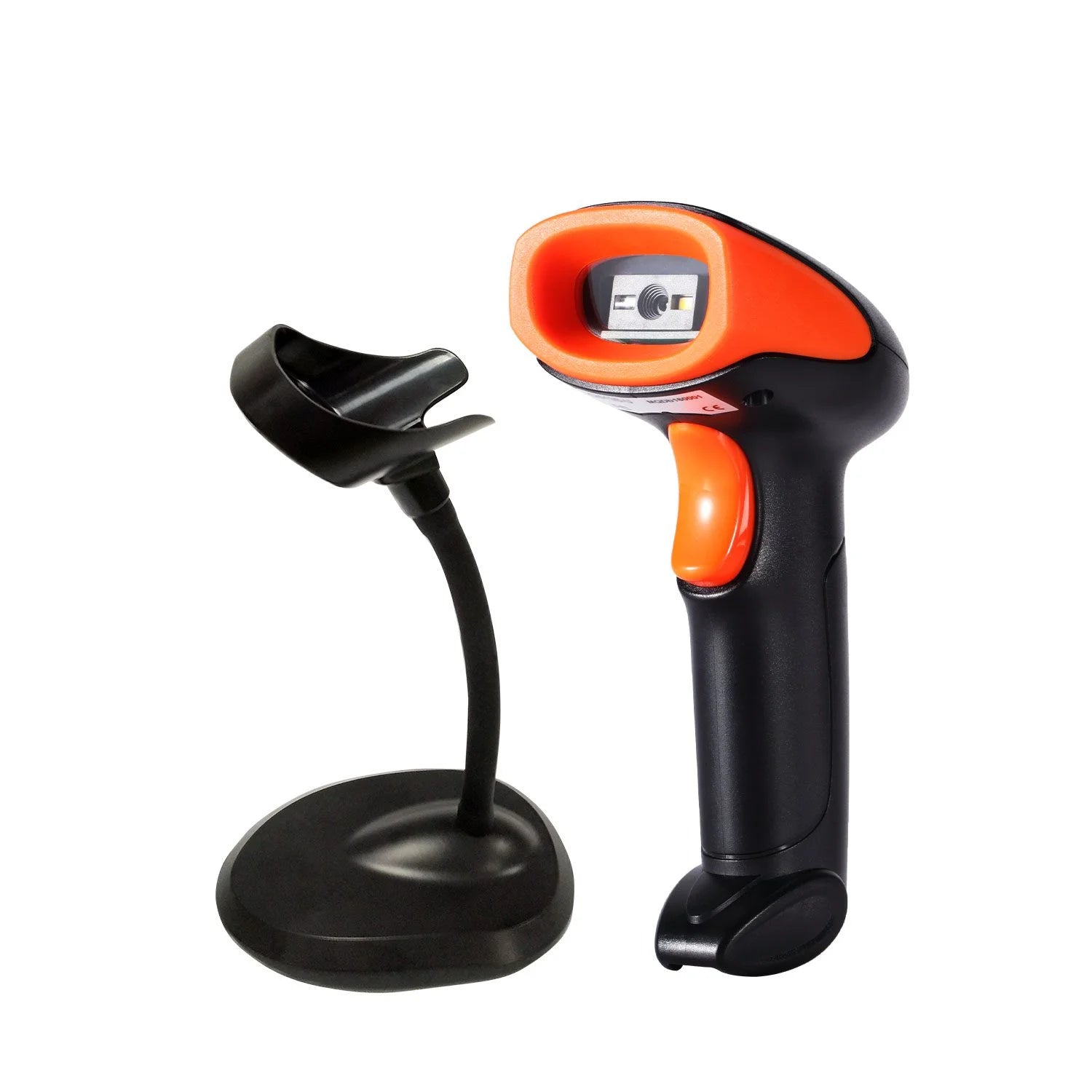

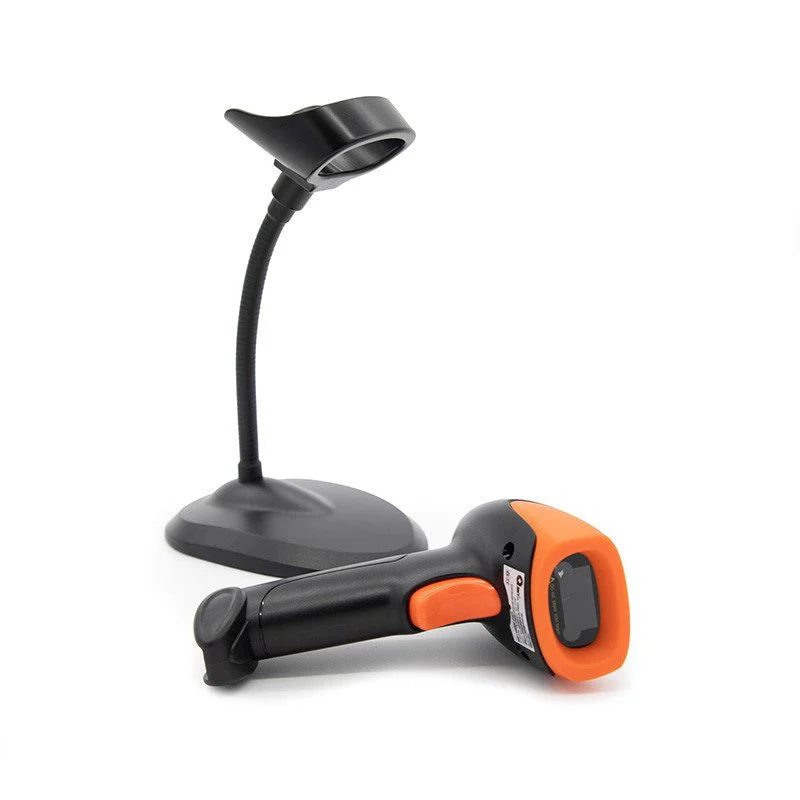

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)
SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)
Couldn't load pickup availability
Description
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
USB HID KEYBOARD/USB COM |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max::170mA Dormant current：48mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640x480 Pixels |
|
Light Source |
White LED |
|
Aim Light Source |
Red Bar LED |
|
Performance Characteristics |
|
|
Scanning Angle |
Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180° |
|
Field of View |
66°(H),50°(V) |
|
Min Resolution |
1D：0.127mm/5mil（PCS 0.9）
2D：0.202mm/8mil（PCS 0.9） |
|
Min .PCS value |
〉20%UPC/EAN 13（5mil） |
|
Language |
Multiple Languages |
|
Data Edition |
Support for custom data output |
|
Decode Capability |
1D : Code128（ISBT 128、AIM 128、GS1 128)、EAN-13、EAN-8、UPCE0、 UPCE1、UPC-A、ISBN、ISSN、Code11、Interleaved 2 of 5、Code39、 Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、 MSI Plessey
|
|
|
2D: QR Code，Data Matrix，PDF417，Micro QR |
|
Physical Characteristics |
|
|
Dimensions |
90mm*62mm*160mm(L*W*H) |
|
Weight |
125g(not included cable) |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
-20°- 65°C (operation) ， -30°- 70°C (storage) |
|
Humidity |
5 - 90% (operation) ；5 - 90% (storage)5 |
|
Ambient Light: |
Up to 80,000 lx |
|
Shock Drop Test |
1.5m drop onto concrete surface |
